Description
- Complete kit includes: controller with wireless IR remote, power supply, and water-resistant silicone-gel coated LED strip
- Set static colors, adjust brightness, select various auto color-changing modes via wireless IR remote
- LED strip is cuttable every 3 LEDs, approx. every 4", at designated cut marks, to fit various length requirements
- Flexible - fits just about any space one can imagine
- Eco friendly - uses very little energy, without harmful radiations

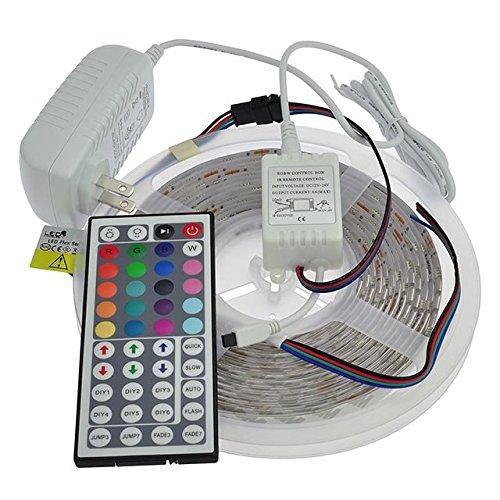

These LED color-changing flexible strips are great for nearly any application. Each kit comes with a 16.4 ft (5 meters) long LED light strip reel, controller with wireless IR remote, and the power supply. Everything needed to add great light to any location.
Specifications (LED strip)
* LED Quantity/Type: 150x SMD5050 RGB
* Input Voltage: 12 VDC
* Power: 21.3 W
* Beam Angle: 120
* Dimmable: Yes
* IP Rating: IP65
* Pin Order: +RGB
* PCB Color: White
* Width: 10 mm
* Length: 16.4 ft (5 m)
* Wire Leads: 22 AWG
* Compliance: CE, RoHS
* Life Expectancy: 35,000 h
* Warranty: 1 year
Wiring
* Unroll LED strip completely.
* Any exposed wires on the other end of the LED strip must not touch one another (or any metal object), creating a short.
* Connect the 4-pin connector of controller to that of the LED strip.
* Connect DC jack of power supply to controller.
* Remove the plastic seal in the battery compartment of the wireless remote.
* Double check that all connections are correct and secure, then plug in power cord.
Note
* While the included controller can handle the power requirement of two such strips, the power supply only has the capacity to drive a single strip.
* Do not lengthen the LED strip by directly connecting an additional section to it.
* Test all components before permanent installation.
* Make sure that wires at the other end of the LED strip are not touching one another (or any metal object), which would create a short circuit.
* The LED strip is cuttable every 3 LEDs, approx. every 4", at the designated cut marks.
* Only the LED strip is waterproof; all other components and connections must be protected from getting wet.
