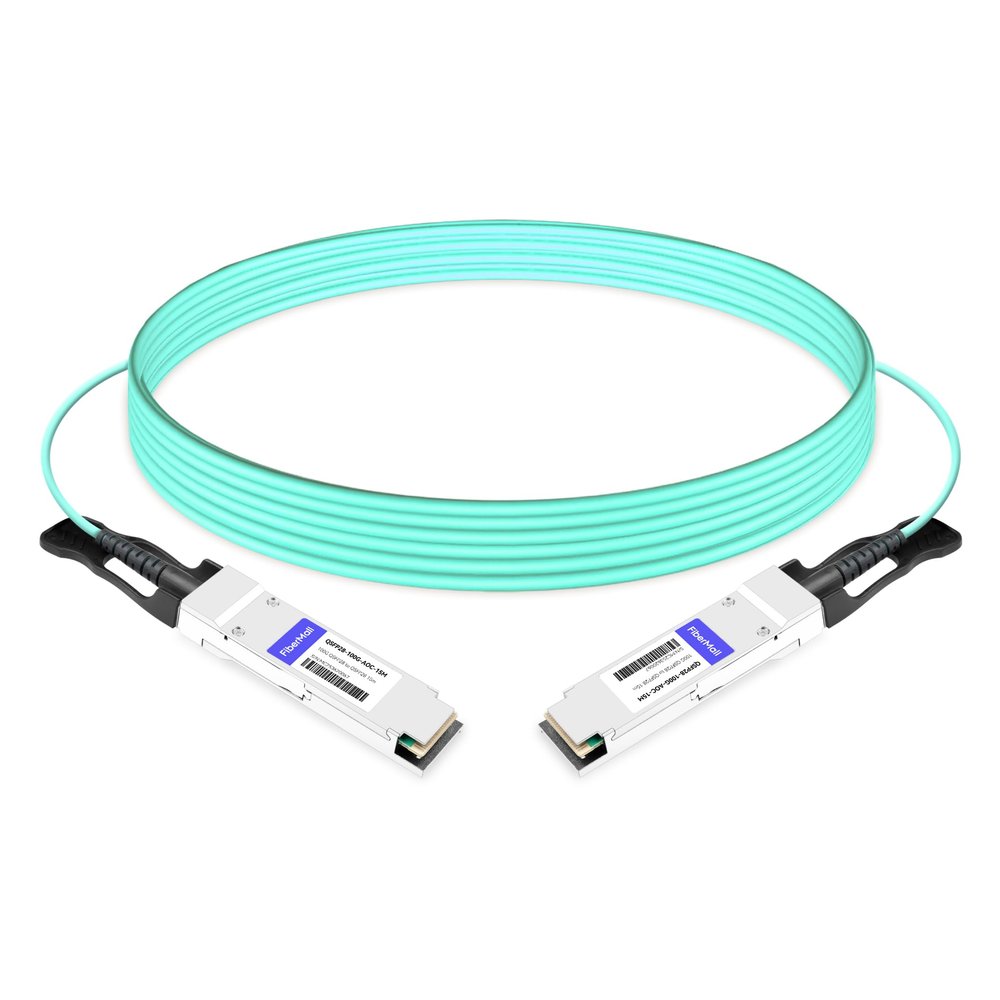

100G QSFP28 to QSFP28 Active Optical Cable Compatible with Cisco QSFP-100G-AOC15M, 70m on OM3 Multimode Fiber (MMF) and 100m on OM4 MMF,15m(49ft)

Description

• 15m(49ft) 100G QSFP28 Active Optical Cable (QSFP28 to QSFP28 AOC Cable, Active OM3 ,Compatible with Cisco QSFP-100G-AOC15M
• 4 channels full-duplex transceiver modules, Supports 100Gbps total data rate, Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF 0~ 70 C (32 to 158F)
• 100G QSFP28 AOC is a 4x25Gb/s active optical cable, which is designed for 100G Ethernet (100GbE) and InfiniBand FDR/EDR applications. They are composed of QSFP28 transceivers in both ends and OM3(OM4) multi-mode fiber cable.
• Max. Power Consumption 3.5W. 4 channels 850nm VCSEL array, 4 channels PIN photo detector array. Built-in digital diagnostic functions.
• Minimum Bend Radius 8mm for Flexible Routing. Simplifies the Patching and Offers a Cost-effective Way for Short Links.
• Hot Pluggable QSFP28 MSA Compliant, The 100G QSFP28 AOC cables is fully compliant with QSFP28 MSA of IEEE 802.3bm 100GBASE-SR4 and CAUI-4 specifications.

100G QSFP28 to QSFP28 Active Optical Cables
1M, 2M, 3M, 5M, 7M, 10M, 15M, 20M, 25M, 30M Reach





Description


This is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP28 Active Optical Cable (AOC) for 100 Gigabit Ethernet and Infiniband EDR Applications. This AOC is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 100 Gbps bandwidth. Each lane can operate at 25.78125 Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. These modules are designed for operation over multimode fiber systems using a nominal wavelength of 850nm. Theelectrical interface employs a 38-contact edge-type connector. The optical interface utilizes a 12-fiber MTP (MPO) connector.





Product Features


Form Type: QSFP28 to QSFP28 Vendor Name: Fiber Mall 4 channels full-duplex transceiver modules Supports 100Gbps total data rate Transmission data rate up to 28.05Gbps per channel 4 channels 850nm VCSEL array 4 channels PIN photo detector array
