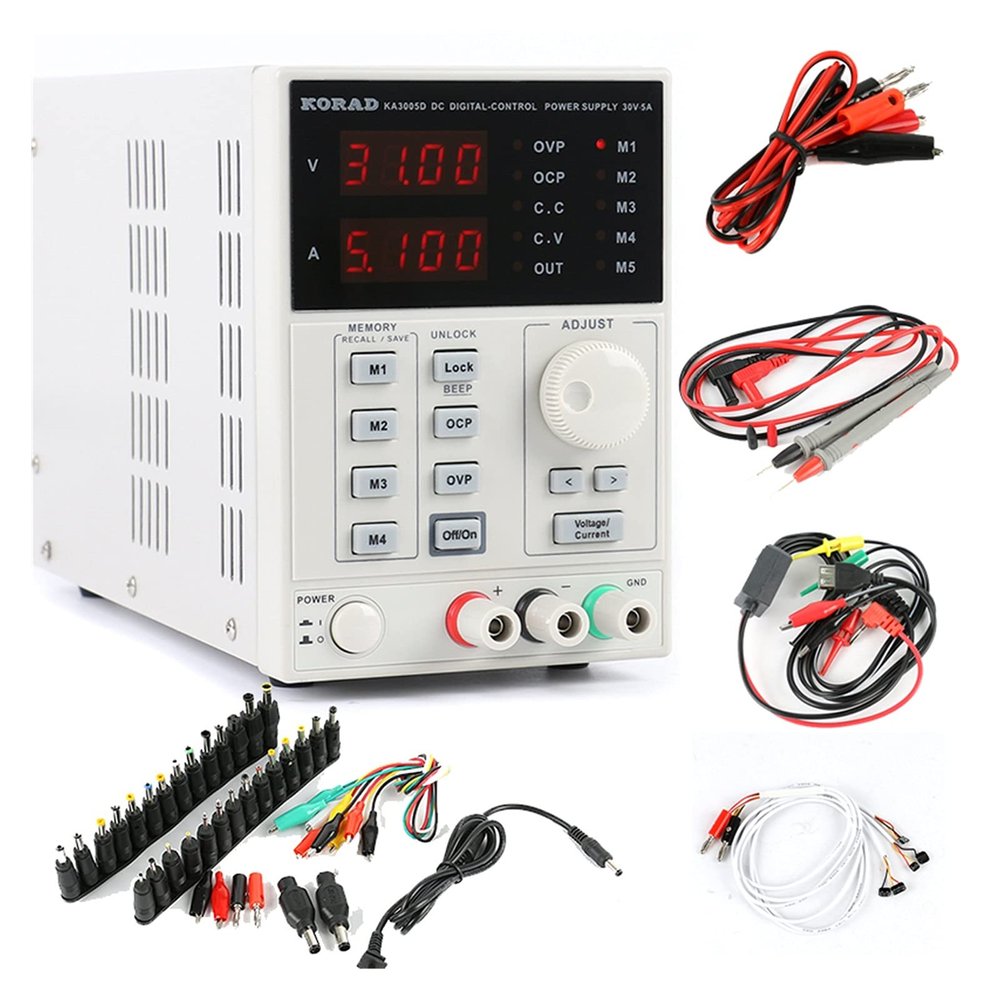

ACE4U Precision Adjustable Digital Programmable DC Power Supply Laboratory Power Supply 30V 5A +Laptop AC DC Jack Phone(220)

Description

• Professional power supply design with intuitive operability.
• Simple and intuitive operation, fast and accurate selection of voltage and current can be realized.
• To prevent damage to the load
• Can be set to the value of over-voltage protection and over-current protection to prevent the voltage regulator from beyond the threshold can
• The keyguard lock panel buttons to prevent undesirable results in the key test engineering,5 user-programmable preset settings
• Just press the button to recall and save area a key to bring up the user to store the data and save user settings
• Welcome and I wish you a happy life, my friend.

Features :
1. 30V/5A full digital power control single
2. 10mV/1mA high accuracy and resolution
3. Low noise and ripple
4. CV/CC given voltage and constant current mode
5. Highly reliable OCP, OVP, arbitrarily set protection
6. Built-in set of parameters stored
7. Outputs a switch control
8. Power and memory function
9. Keypad lock to prevent misuse
10. Intelligent temperature control fan, effectively reduce the noise
11. Easy alternative to traditional digital power
Precisely generate the required voltages and currents.
0-30V adjustable DC output high-precision.
10mV and 1mA resolution.

Operating Conditions :
Input voltage : 220-V +/-10%
Frequency range : 50- 60Hz
Operating temperature : 32-104 (0-40 C)
<; 80%RH
Storage temperature : 32-158 (0-70 C)
<; 70%RH
Stable Voltage :
Output Voltage Range : 0-30V Continuously adjustable
Setup Resolution : 10 mV
<;0.05% +20 mV
<; 1mVRMS
Read back Accuracy : 10 mV
<; 0.1% + 10mV
<; 100 ppm+10 mV
Stable Current :
Output Current Range : 0-5A Continuously adjustable
Setup Resolution : 1 mA
<;0.1% +3 mA
<; 3mARMS
Read back Accuracy : 1 mA
<; 0.1% + 5mA
<; 100 ppm+5 mA
Dimensions : 4.3 x 6.1 x 10.25 inch (110 x 156 x 260mm)
Package includes :
1 x 0~30V 0~5A Adjustable DC Power Supply
1 x User Manual
1 x Test line
2 x Test line clamp
2 x Probe
1 x Power line
1 x DC Jack Set
2 x Phone Repair Power Line
