Description
- AMD AM3/AM2+/AM2 CPU Support
- 4 x SATA 3Gb/s RAID 0,RAID 1, RAID10, RAID 5 and JBOD
- Dual channel DDR2 1066/800/667
- PCI Express x16 architecture
- EZ Flash2 & Crashfree BIOS3

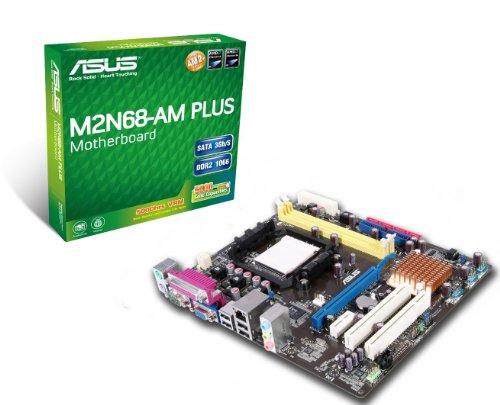

The Asus M2N68-AM PLUS motherboard supports AMD AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption, AMD Socket AM2+ multi-core processors and AM2 Athlon 64/ Sempron/Athlon 64 X2/ Athlon 64 FX/ AM2+ processors. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to 2600MT/s via HyperTransport 1.0 based system bus. Specifications CPU Socket Type - AM3/AM2+/AM2 CPU Type - Phenom II / Phenom / Athlon II / Athlon64 /Sempron FSB - 1000MHz Hyper Transport (2000 MT/s) North Bridge - NVIDIA GeForce 7025/nForce 630a Memory - 2 x DIMM, Max. 8 GB, DDR2 1066/800/667 ECC, Non-ECC, Un-buffered Memory (Due to AMD CPU limitation, DDR2 1066 is supported by AM2+ CPU for one DIMM per channel only) Expansion Slots - 1 x PCIe x16, 1 x PCIe x1, 2 x PC Onboard Video Chipset - NVIDIA GeForce 7025 Audio - ALC662 High Definition Audio 6-Channel CODEC (Supports Jack-detect and Multistreaming technologies) Storage Devices - PATA 1 x ATA133 2 Dev. Max; 4x SATA 3Gb/s ports support RAID 0/1/5/10/JBOD LAN - RTL8211CL Gigabit LAN USB - 10 USB 2.0/1.1 ports (6 ports at mid-board, 4 ports at back panel) Back Panel I/O Ports - 1 x VGA, 1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x LAN (RJ45) port, 4 x USB 2.0/1.1, 1 x COM port, 6 -Channel Audio I/O, 1 x LPT Form Factor - micro ATX Form Factor Dimensions - 9.6 inches x 8.2 inches (24.4 cm x 20.8 cm)
