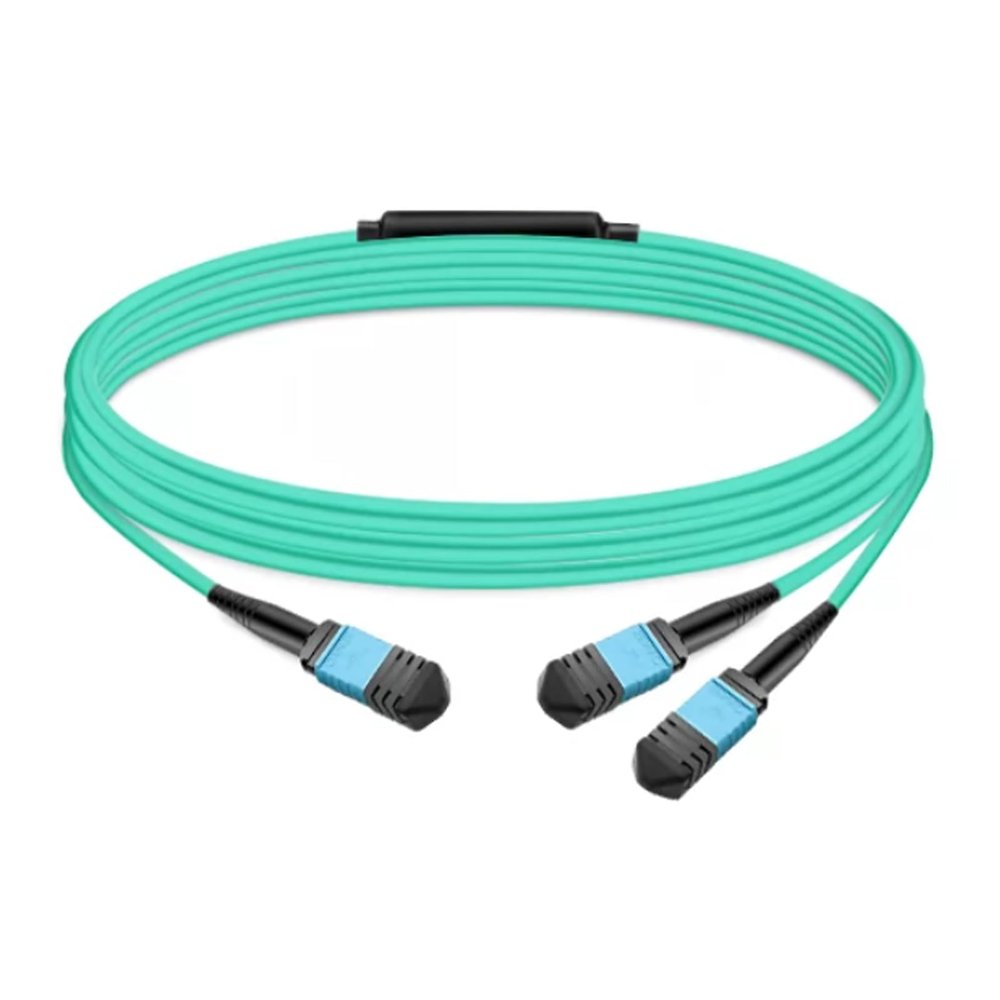

Gvdlink NMFP7E20 Optical Multimode Splitter Fiber Cable 3m (10ft) MPO12 to 2xMPO12 LSZH OM4 for NMFP7E20-N003 (10, feet)

Description

• The MFP7E20-Nxxx cable for NVIDIA, is a multimode, 4-channel-to-two 2-channel splitter fiber cable. The Multiple Push On, 12 fiber, Angled Polished Connectors (MPO-12/APC) uses 8 active fibers to transmit light and 4 inactive fibers as strength members. The Angled Polished Connector has a 8-degree polished angle to deflect internal optical back reflections from entering the transceivers and distorting the signal quality
• The 4-channel end is inserted into a Twin port OSFP, 800Gb/s transceiver. The 2-channel ends are inserted into two, single-port 400Gb/s OSFP and/or QSFP112 transceivers which with only 2 fibers can output 200G rates. Two splitter fiber cables are used in the twin-port OSFP transceiver enabling four, 2-channel ends to four transceivers.
• The fibers are crossover, Type-B cables enable directly attaching two transceivers together and allow the transmit laser fiber on pin 1 to crosses over and align with pin 12 of the opposite fiber end transceiver photodetector.
• The typical usecase is linking OSFP switches to in ConnectX-7 network adapters and/or BlueField-3 Data Processing Units (DPUs) in compute and storage servers.
• Rigorous cable production testing ensures best out-of-the-box installation experience, performance, and durability. For NVIDIAs optical solutions provide short, medium, and long reach scalability for all topologies, utilizing innovative optical technologies to enable high signal integrity and reliability

The MFP7E20 Fiber Cable is intended for interconnection of 2 servers sharing a port in a high-speed switch. The cable mates with pluggable optical 400GbE/NDR transceivers such as Nvidias MMA4Z00- NS twin port OSFP DR8 transceiver for InfiniBand and Ethernet systems in the switch end and MMA4Z00-NS400 (OSFP) or MMA1Z00-NS400 (QSFP112) in ConnectX-7 network adapters and BlueField-3 DPUs.
