Description
- Power Converters
- VRB1212YMD-5WR3 Sngle Output 12Vdc to 12V 420ma 5W DC DC Power Module HLK-5D1212 9-18V
- Item weight: 0.11 pounds
- Power plug type: no_plug
Power Converters

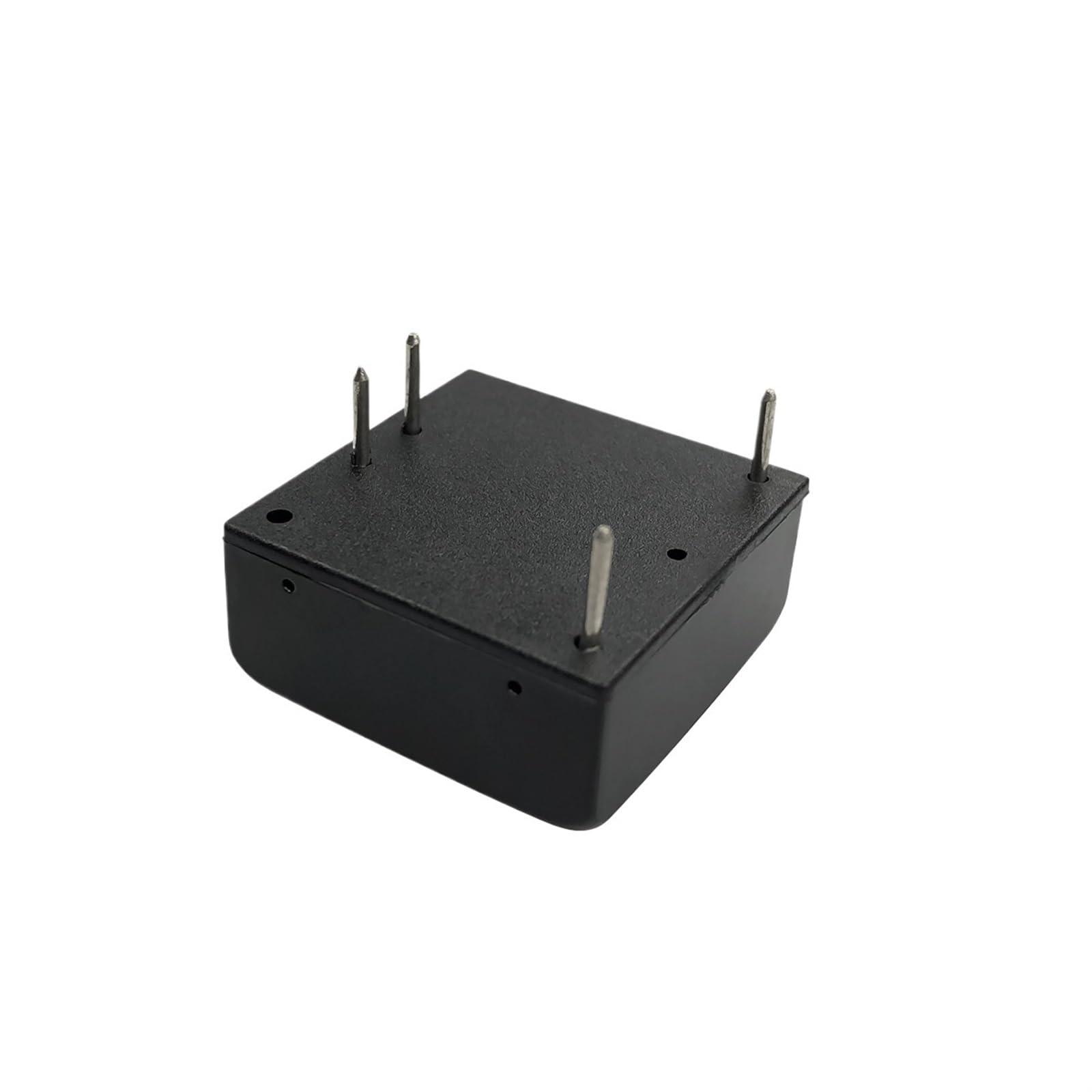

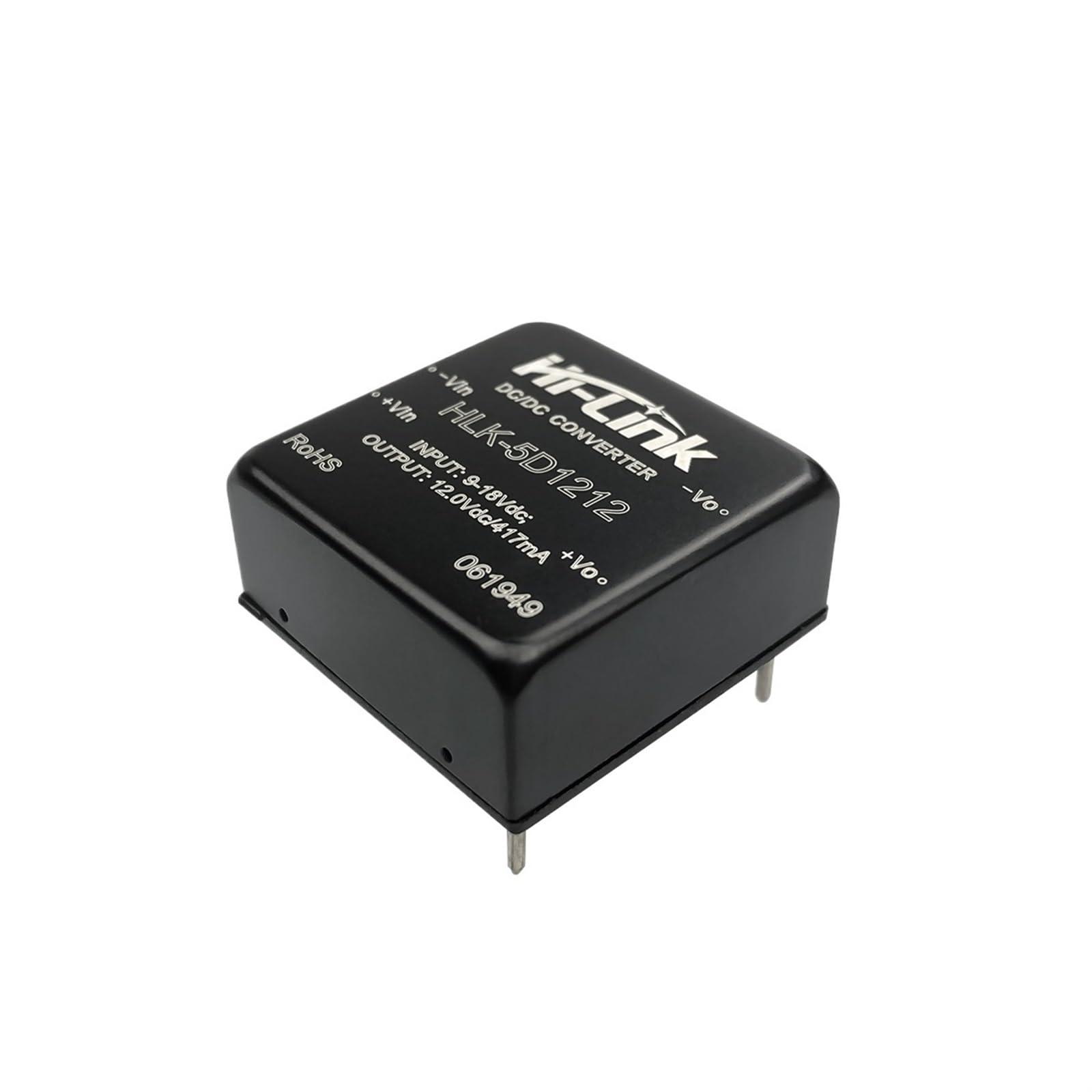

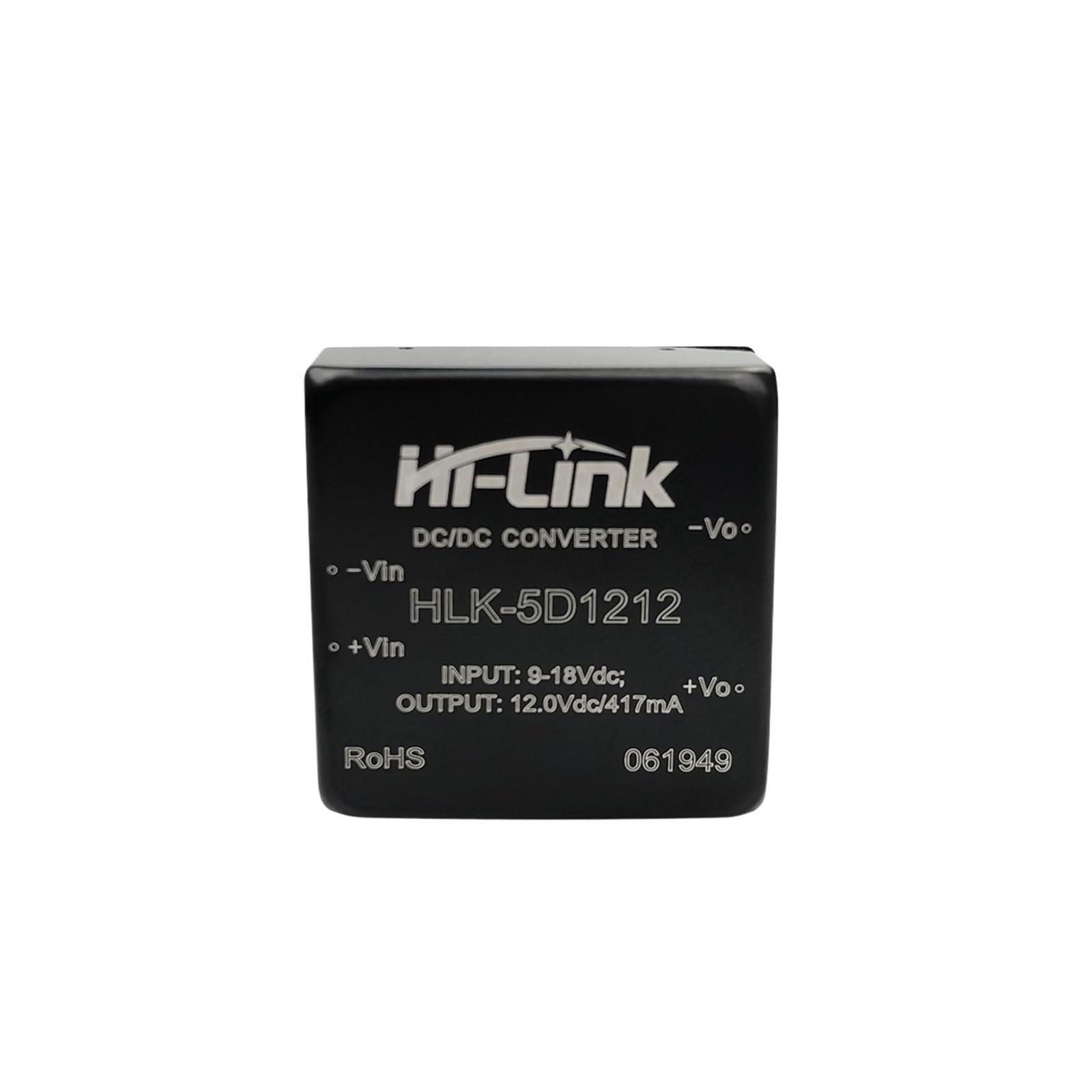

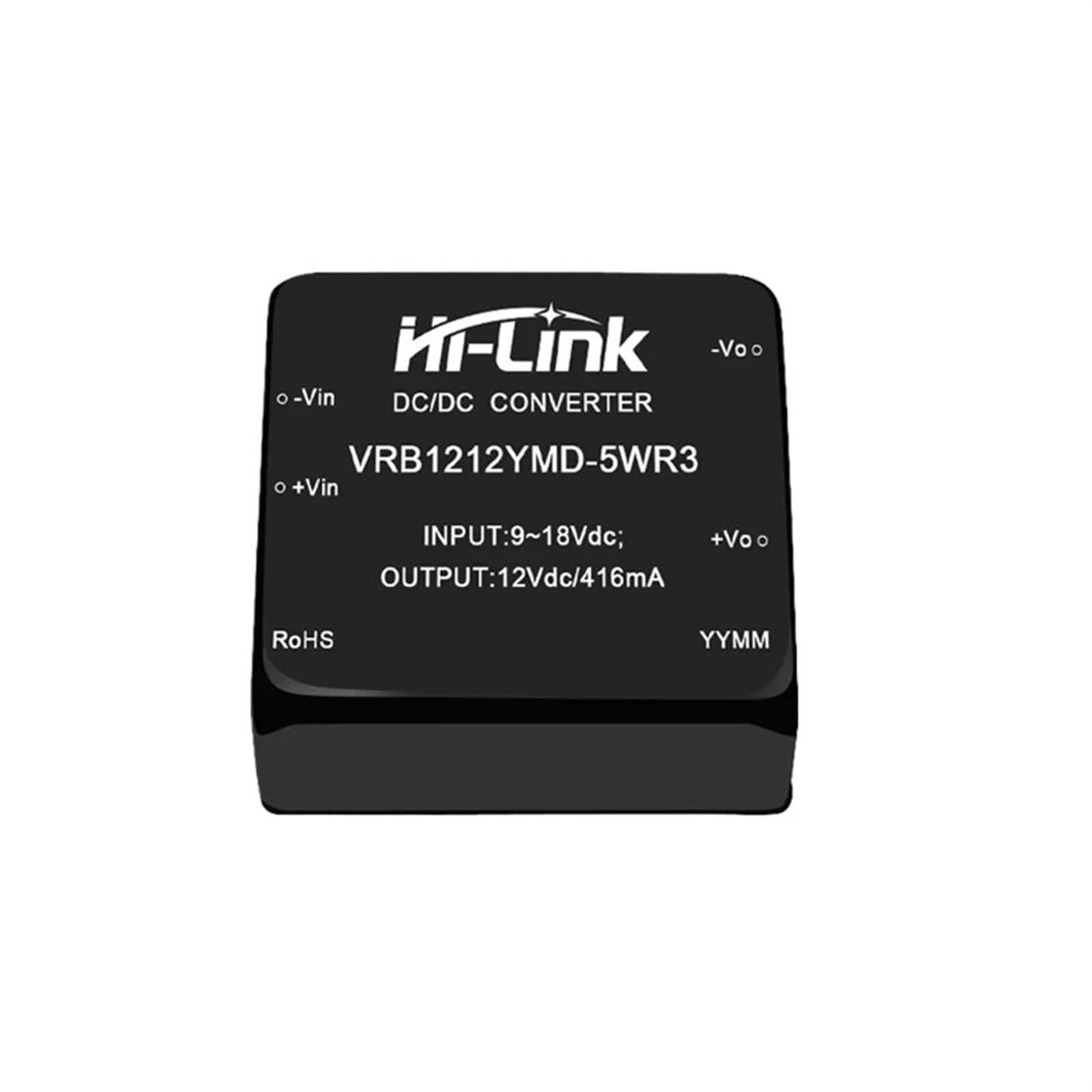

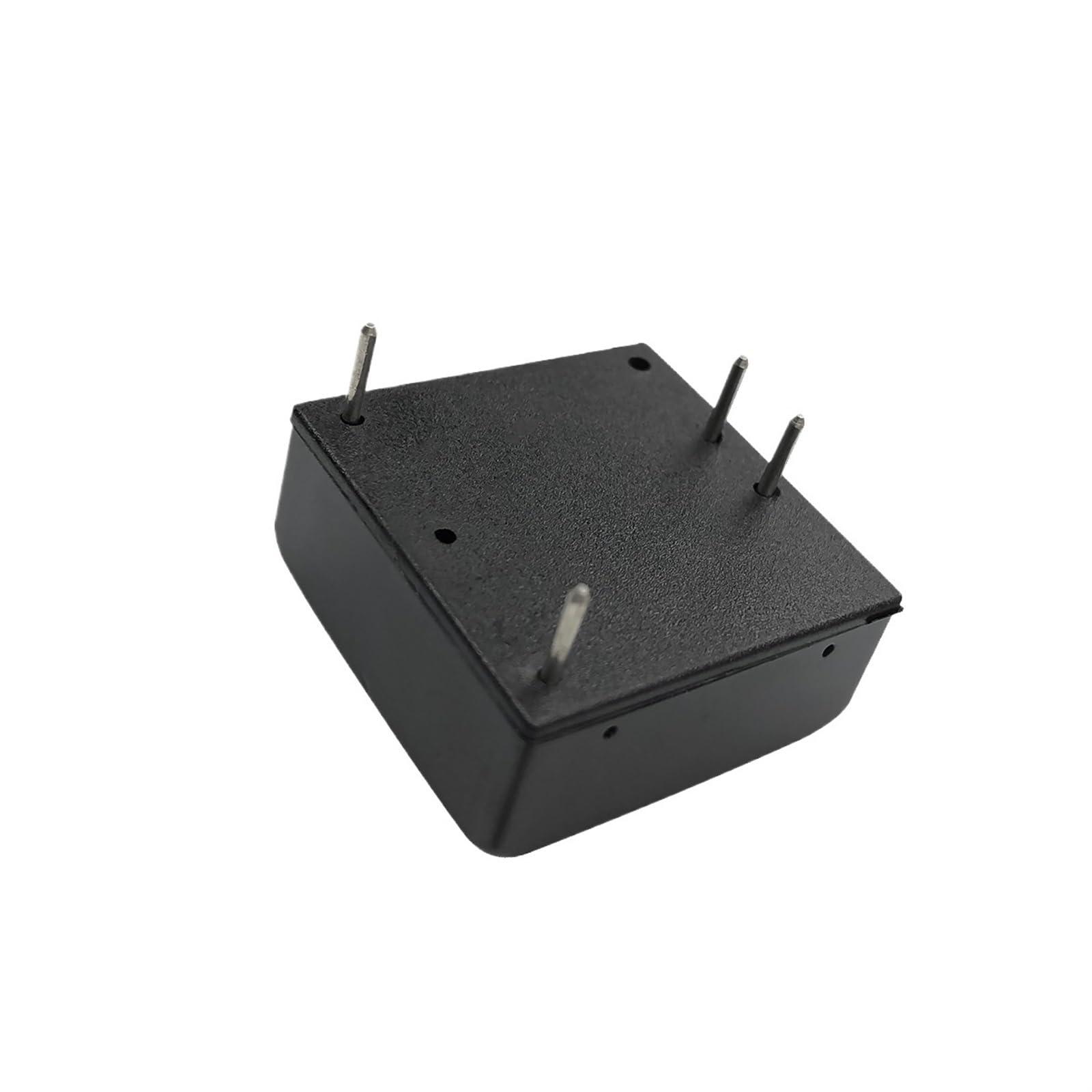

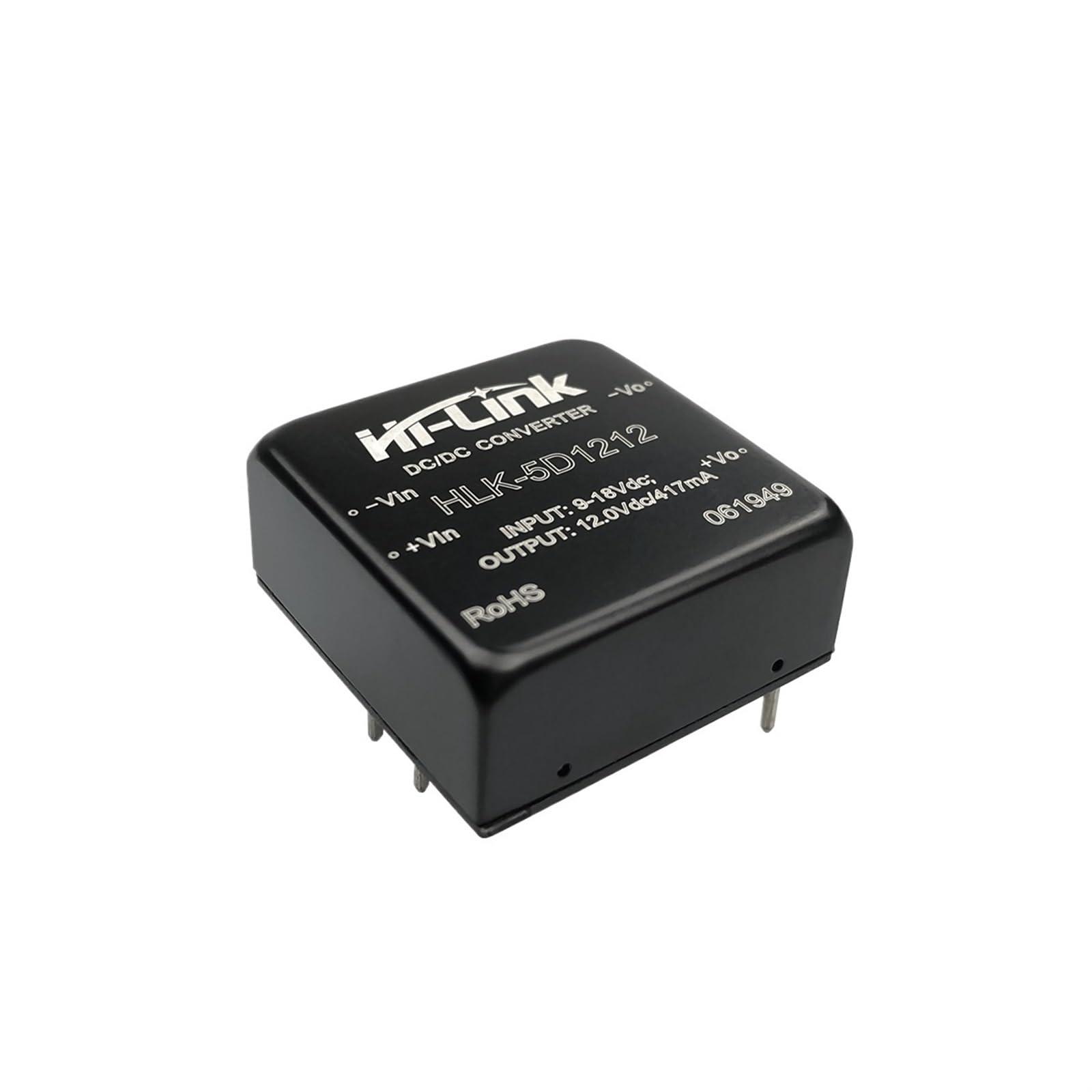

VRB1212YMD-5WR3 Sngle Output 12Vdc to 12V 420ma 5W DC DC Power Module
HLK-5D1212 9-18V
5W DC-DC series power module is a small size converter, 2:1 wide voltage input range, efficiency up to 84%, 1500VDC conventional isolation voltage, allowable operating temperature -40C to +85C, with output overvoltage, overcurrent, short circuit Protection functions, widely used in medical, industrial control, electric power, instrumentation, communications, railway and other fields.
Product Features
1. Ultra wide range input (2:1), output 5W
2. Conversion efficiency: 84% (Typ)
3. Isolation voltage: 1500Vdc
4. Ultra low standby power consumption: 0.3W (typical)
5. Ultra fast start: 100mS (typical)
6. Operating temperature range: -40 C ~ +85 C
7. Output protection: short circuit protection, over current protection, over voltage protection
8. Metal case, low output ripple
9. International standard pin, PCB board in-line installation
10. It is sealed with environmental protection waterproof and thermal conductive glue, moisture proof and vibration proof, and meets the requirements of waterproof and dustproof IP65.
11. High reliability, long life design, long continuous working time
Input characteristics
Items
Working conditions
Unit
Remarks
Rated input voltage
12
Vdc
Input voltage range
9-18
Vdc
Max input current
0.7
A
Reflected ripple current
----
mA
DC12V rated input
voltage series
Impulse voltage
50
Vdc
Startingvoltage
9 Vdc
Input undervoltage
protection
---
Vdc
Start delay time
100
ms
Rated input voltage and
constant resistance load
Input filter type
---
PIversion
---
No-support
Remote end(Ctrl)*
Module open
--
Module closed
--
Input current when turned off
mA
--
--
--
Environment conditions:
