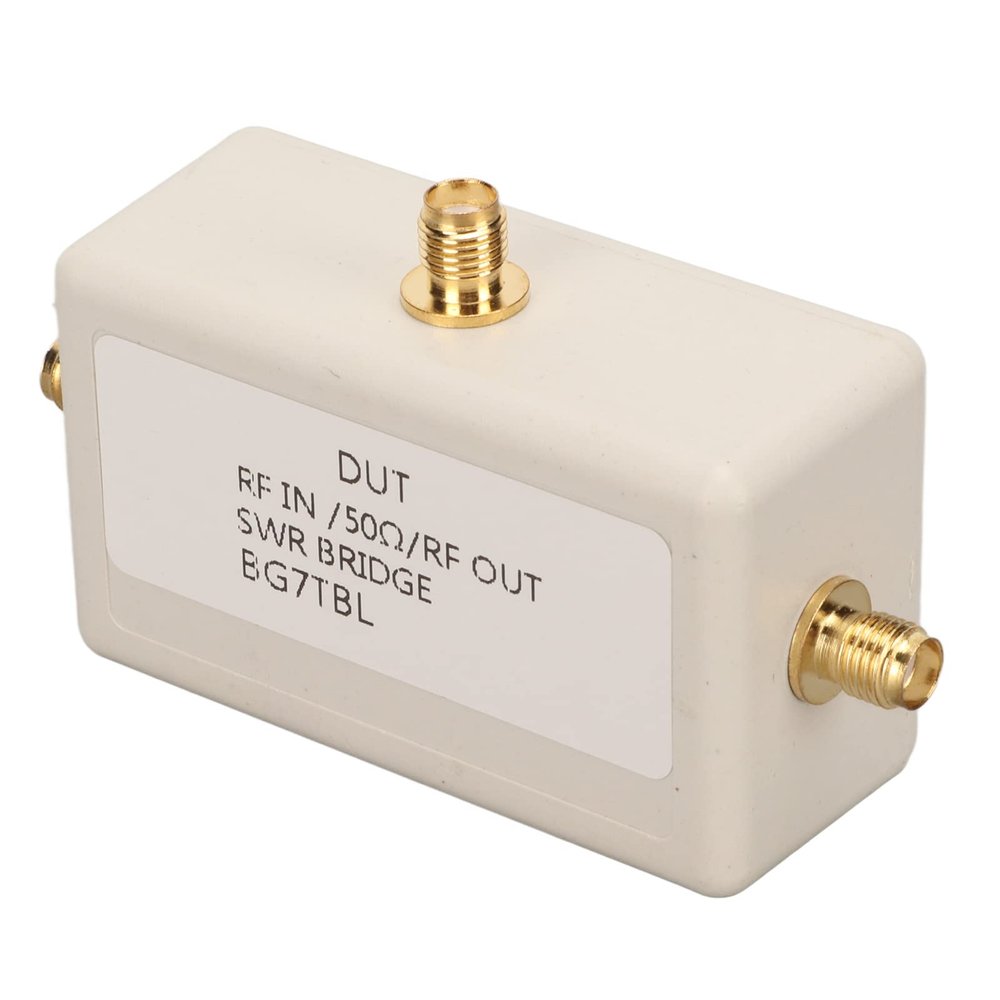

SWR Bridge 1-500MHz Frequency Range 3 Port Antenna Analyzer for Amateur Radio Field Measurements High Accuracy SWR Readings 0.1 to 500 Ohm Impedance Matching for Quick Fault Detection

Description

• WIDE APPLICATION: SWR bridge is widely used in antenna measurement and debugging, debugging and testing of RF matching circuits.
• STRONG DIRECTIONALITY: SWR high power bridge has strong directionality, which is typical for directional 30dB and 500MHz.
• 3 PORTS: The left interface is the RF input, connected to the spectrum analyzer tracking source (TG); the middle interface is connected to the antenna under test; the right interface is connected to the spectrum analyzer input.
• HIGH FREQUENCY: Standing bridge adopts microstrip circuit design to meet the requirements of high frequency RF working frequency range 1500MHz.
• HIGH POWER: 1-500Mhz standing ratio bridge features high power, with a maximum input power of +13DBM and 50 impedance.

1. WIDE APPLICATION: SWR bridge is widely used in antenna measurement and debugging, debugging and testing of RF matching circuits.
2. HIGH FREQUENCY: Standing bridge adopts microstrip circuit design to meet the requirements of high frequency RF working frequency range 1500MHz.
3. STRONG DIRECTIONALITY: SWR high power bridge has strong directionality, which is typical for directional 30dB and 500MHz.
4. 3 PORTS: The left interface is the RF input, connected to the spectrum analyzer tracking source (TG); the middle interface is connected to the antenna under test; the right interface is connected to the spectrum analyzer input.
5. HIGH POWER: 1-500Mhz standing ratio bridge features high power, with a maximum input power of +13DBM and 50 impedance.

Specification:
Item Type: SWR Bridge
Material: ABS, PCB
Impedance: 50
Directionality: Better Than 30DB
Frequency Range: 1500MHz
Maximum Input Power: +13DBM

How to Use:
Plug and Play

Package List:
1 x SWR Bridge
or1 x SWR Bridge
1 x Attenuator
