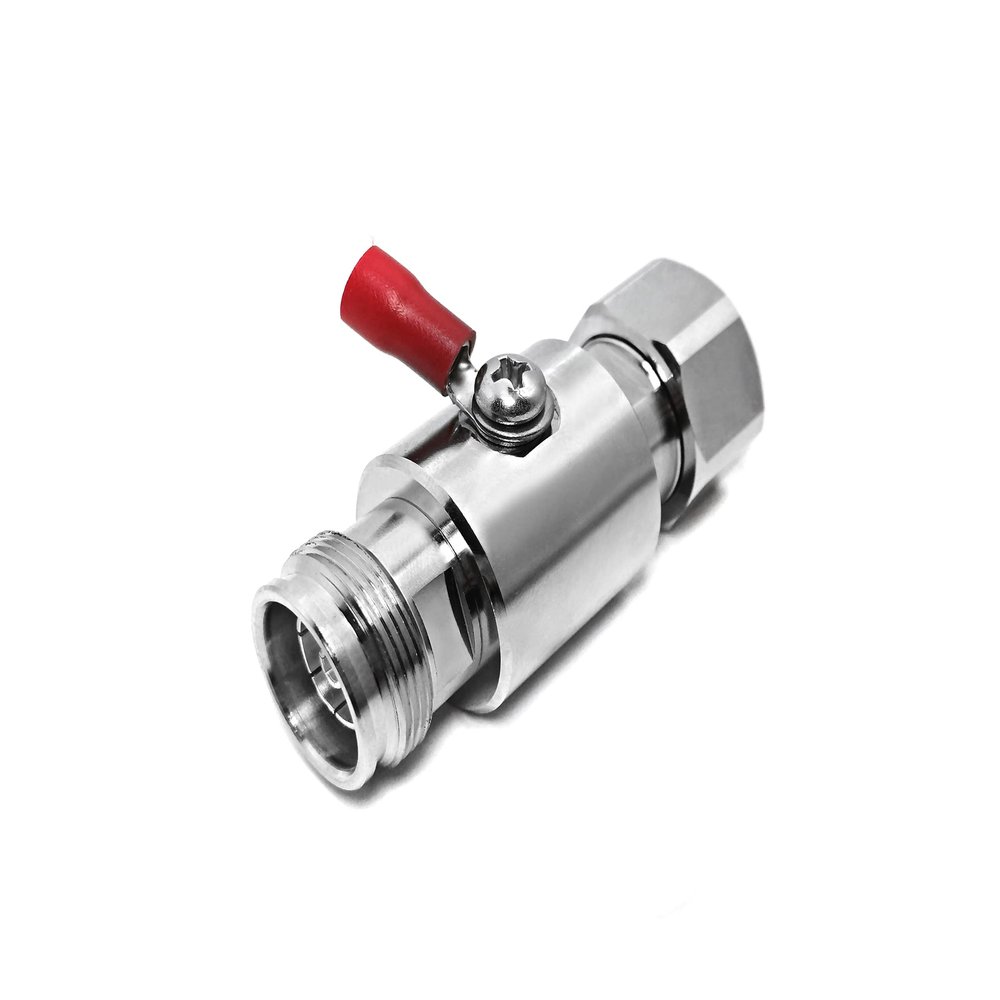

Worldpeak Lightning Protector L20 Male to L20 Female 90V Discharge Gas Tube DC-3GHZ Surge Arrester

Description

• Multifunction L20 Male to L20 Female WiFi Antenna Cable Converter/Adapter with Gas Discharge Tube Surge Protector works with 2.4/5GHz 3G 4G LTE networks
• Convert your coaxial cable existing connector to a different type connector of your singal booster and protect your equipment from a lightning strike at the same time
• Indoor and outdoor application. With IP65 standard of ingress protection, you can install the coax surge protector inside or outside because it's made to resist all weather conditions.
• With wide frequency range 0-3Ghz, you can use coax lightning arrestor either in your setup for ham radio,or just a simple setup with the lte cellular antenna or a yagi wireless antenna, with minimum signal-loss.
• Protects the valuable and expensive equipment behind antenna. Tri-metal plated brass body, center conductor gold plated, bronze contacts, ground contact attached.

Coaxial Lightning Arrestor Surge Protector L20 Male to L20 Female 50 Ohm DC-3Ghz.

It is a coaxial L20 to Surge Protector that operates over the frequency range of 0-3GHz.
It uses a gas discharge tube to protect connected equipment against transients and surges caused by lightning strikes.
It features standard 50 Ohm L20-Male to Female coaxial connectors.
Protects cell phone signal boosters/amplifiers from power surges typically caused by lightning strikes to antennas mounted outdoors.
Designed to be placed between amplifier and outside antenna cable connection, need to be grounded.

Electrical Specifications:
Input Impedance: 50
Frequency Range: DC - 3GHz
Durability: 500 cycles
VSWR: <1.3:1
Insertion Loss: <0.4dB
DC Breakdown Voltage: 90 V

Mechanical & Environmental:
Connector Types: L20-Male to Female Connector
Body Material: Brass nickel plated
PinBody brass gold plated
Insulator Material: PTFE( Teflon)
Temperature Range: -55 to +155

Package: 1 x L20 Coax Lightning Arrestor Surge Protector L20-Male to Female 50 Ohm DC-3Ghz( with 90V gas discharge element )
