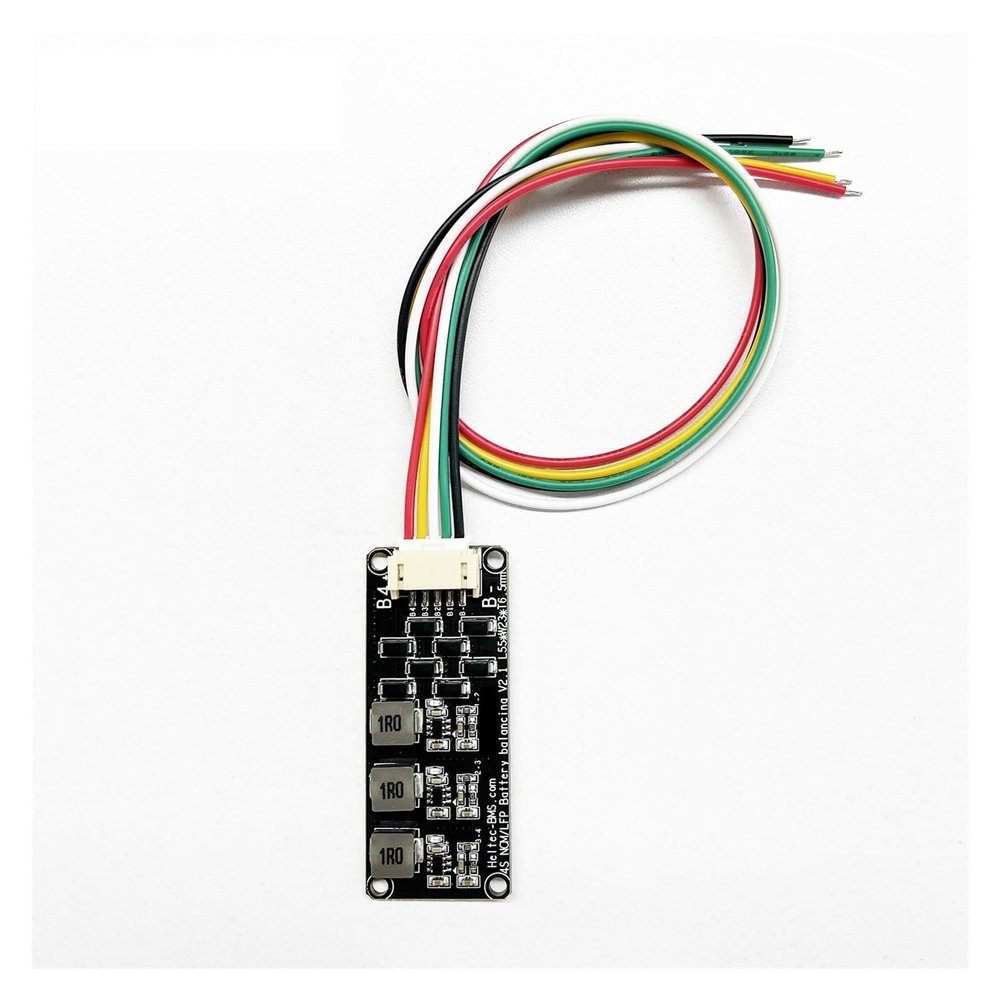

ZIPCOM battery equaliser Wholesale 1.2A 2S 3S 4S-16S Active Equalizer Module 5A Li-Ion Lifepo4 Lithium Battery Active Balancer Energy Transfer/8S 13S 20S (Color : 4S 1.2A)

Description

• Battery energy transfer: a practical and multi-functional battery equalizer can be used for battery overshoot and over discharge protection.
• Battery voltage balancer: it is used for the batteries which are connected in series to keep the voltage of batteries are equal.
• Battery balancer: the equalizer starts to work when there are between two batteries.
• Durable battery equalizer: widely applied in -acid battery, nickel- or nickel- battery, etc.
• Voltage balance: using this shell is strong and durable for long-serving life.

New function:Functions of the board: a freewheeling diode is added. The freewheeling diode is often used together with the energy storage element to prevent sudden changes in voltage and current, provide access and protect the balance board. Another change is to use inductance with larger volume and power, which is conducive to heat dissipation.Balance indication:1. When the equalization light is on, the equalization work is turned on.2. The equalization light goes out, the equalization circuit sleeps,3. The equalization light flashes, the string indication is lost, or the circuit is faulty.Principle of equilibrium:This module is adjacent to the differential pressure equalization, and the adjacent battery voltage difference reaches 0.1V or more. The internal trigger balance is working until the adjacent battery voltage difference stops within 0.03V. There is an adjacent differential pressure when charging and discharging on the battery pack. Trigger equalization, the battery pack voltage error will be pulled back to the ideal value, reducing battery maintenance costs.Technical Parameters:Working voltage is 2.0V-4.5V, ternary iron lithium battery is common, lithium cobalt oxide battery is not applicable.Equilibrium current:Adjacent pressure difference is 0.1V or more (current is about 0.5-0.7A);Adjacent pressure difference is above 0.2V (maximum equalization current is 1.2A or 0.8A , only 20S max balacne curent is 0.8A);The smaller the differential pressure, the smaller the equalization current.Capacitor Active balancerif you need group balance and faster balance , pls choose capacitor balancer . this link only sell 3S 4S 5A active balancer. if you need more , pls click below to buy more.FetureWorking voltage: 2.7V-4.5VSuitable for ternary lithium, lithium iron phosphate, lithium titanate.Working principle, the capacitor fit transfers the charge mover, the equalization boar
